Brand: TSM Technology
Material: Aluminum alloy 6061, 7075
3 factories*8 production lines*70+ machines
Supply Ability:300,000 PCS
Thread specifications: #4, #5, #6, #8, #10, #12, #14
Length range: ½″ ~ 6″ (12 mm ~ 150 mm)
Standards: ASTM, DIN, JIS, BS, GB/T
Payment terms: T/T, L/C, Paypal, West Union or as required
MOQ:100PCS
Provide Free sample

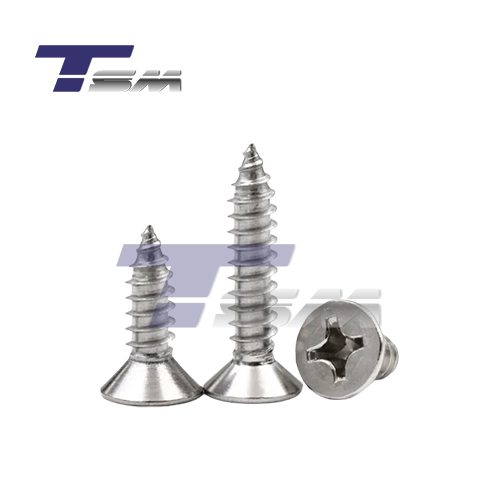

TSM TECHNOLOGY aluminum wood screws are made of high-quality 6061 and 7075 aluminum alloys, which are lightweight and corrosion-resistant. They are widely used in outdoor wood structures, furniture assembly, electrical appliance fixings and high-end decoration.
Specifications
Parameter | Details |
Material | Aluminum alloy 6061, 7075 |
Thread specifications | #4, #5, #6, #8, #10, #12, #14 |
Length range | ½″ ~ 6″ (12 mm ~ 150 mm) |
Head type | Flat head, countersunk head, round head, oval head |
Drive type | Phillips cross, Square, Hex hexagon |
Thread type | Coarse wood thread |
Surface treatment | Natural oxidation, color anodizing, special coating |
Material advantages
| 6061 Aluminum Alloy | 7075 Aviation Alloy |
✔Tensile strength up to 290 MPa ✔Ideal for structural applications ✔Enhanced corrosion resistance ✔Excellent weldability ✔Magnesium and silicon alloyed | ✔Ultra-high strength (>500 MPa) ✔Widely used in aerospace ✔T73 treatment enhances corrosion resistance ✔Maintains 90% of peak strength ✔Defense industry applications |
Typical Aluminum Chemical Analysis
Element | 6061 Aluminum Alloy | 7075 Aviation Alloy |
Aluminum (Al) | Balance | Balance |
Silicon (Si) | 0.40 - 0.80 | Max 0.40 |
Iron (Fe) | Max 0.70 | Max 0.50 |
Copper (Cu) | 0.15 - 0.40 | 1.2 - 2.0 |
Manganese (Mn) | Max 0.15 | Max 0.30 |
Magnesium (Mg) | 0.80 - 1.20 | 2.1 - 2.9 |
Chromium (Cr) | 0.04 - 0.35 | 0.18 - 0.28 |
Zinc (Zn) | Max 0.25 | 5.1 - 6.1 |
Titanium (Ti) | Max 0.15 | Max 0.20 |
Other (Each) | Max 0.05 | Max 0.05 |
Other (Total) | Max 0.15 | Max 0.15 |
Why choose TSM TECHNOLOGY
1. Direct supply from independent factory: With the ability to produce millions of aluminum screws per year, support OEM/ODM customization and small batch trial orders.
2. Strict quality control: Passed ISO 9001 quality management system certification, full process testing (material, thread, torque, appearance).
3. Diversified services: size, head type, and surface can be customized according to customer requirements, with the fastest sample delivery cycle of 3 days.
4. Technical support: A professional team of engineers provides selection suggestions and engineering solutions.
FAQ
Q1: Can aluminum wood screws withstand high loads?
A: Although aluminum alloy is not as strong as steel, it performs well in wood self-locking structures, and its load capacity meets the needs of conventional furniture and decoration.
Q2: How to prevent aluminum screws from being over-twisted?
A: It is recommended to use an electric screwdriver with a clutch and follow the appropriate torque setting; the screw inner hole can be customized to embed locking glue to further improve.
Q3: What is the minimum order quantity?
A: The MOQ for conventional specifications is 500 pieces. If you need a small number of samples, you can contact our sales staff for consultation.
Contact us
For more details on Aluminum wood screws or to obtain a quote, please contact TSM TECHNOLOGY CO., LTD at: info@tsmfasteners.com. We look forward to working with you to provide high-quality fastener solutions for your project.

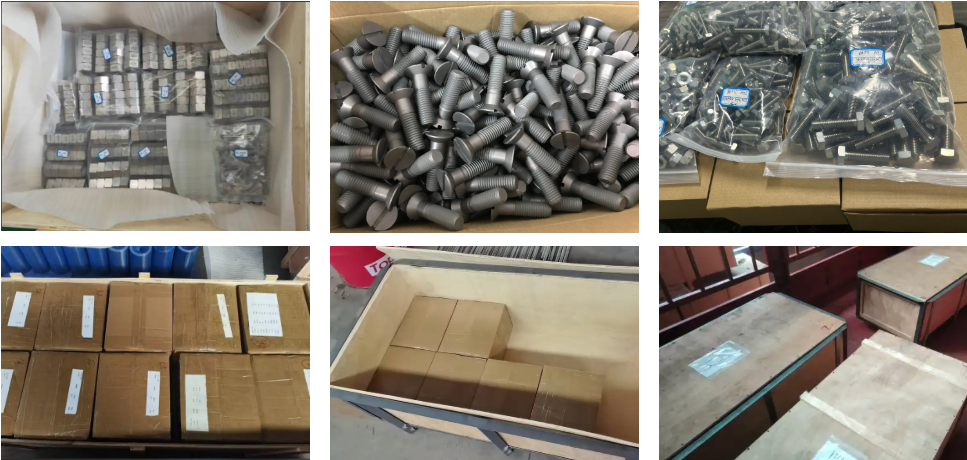

TSM factory and Processing equipment
TSM Technologyis a leading fastener manufacturer with over 20 years of experience in the titanium and nickel industry. With a 3,200㎡ factory and cutting-edge equipment, we specialize in producing high-quality fasteners for automotive, chemical, electronic
